• Selectable bands & transmission ranges (1/2.4 GHz, 10/50 km)
• Up to 3,000 mW total output power
• SDR-based continuous tuning up to 400 MHz
• Ethernet IP interface for seamless integration
• 7.5 Mbps high throughput
• 2×2 MIMO with comprehensive algorithms
• SWaP-C-optimized design

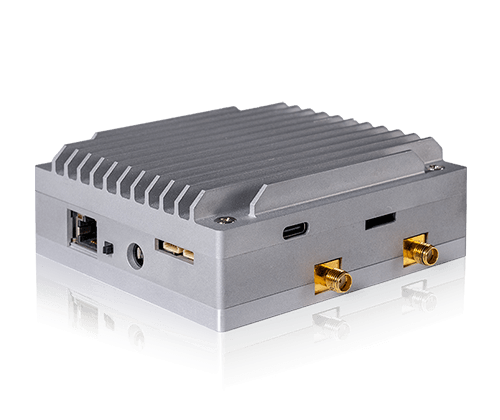

YTTEK’s SDRone Uno Series is an SDR-based UAV communication module designed for tactical and industrial edge applications. It combines continuous frequency tuning with robust MIMO performance in a compact, SWaP-C-optimized design, supporting selectable frequency bands and two transmission range options—built for mission flexibility and rapid deployment.

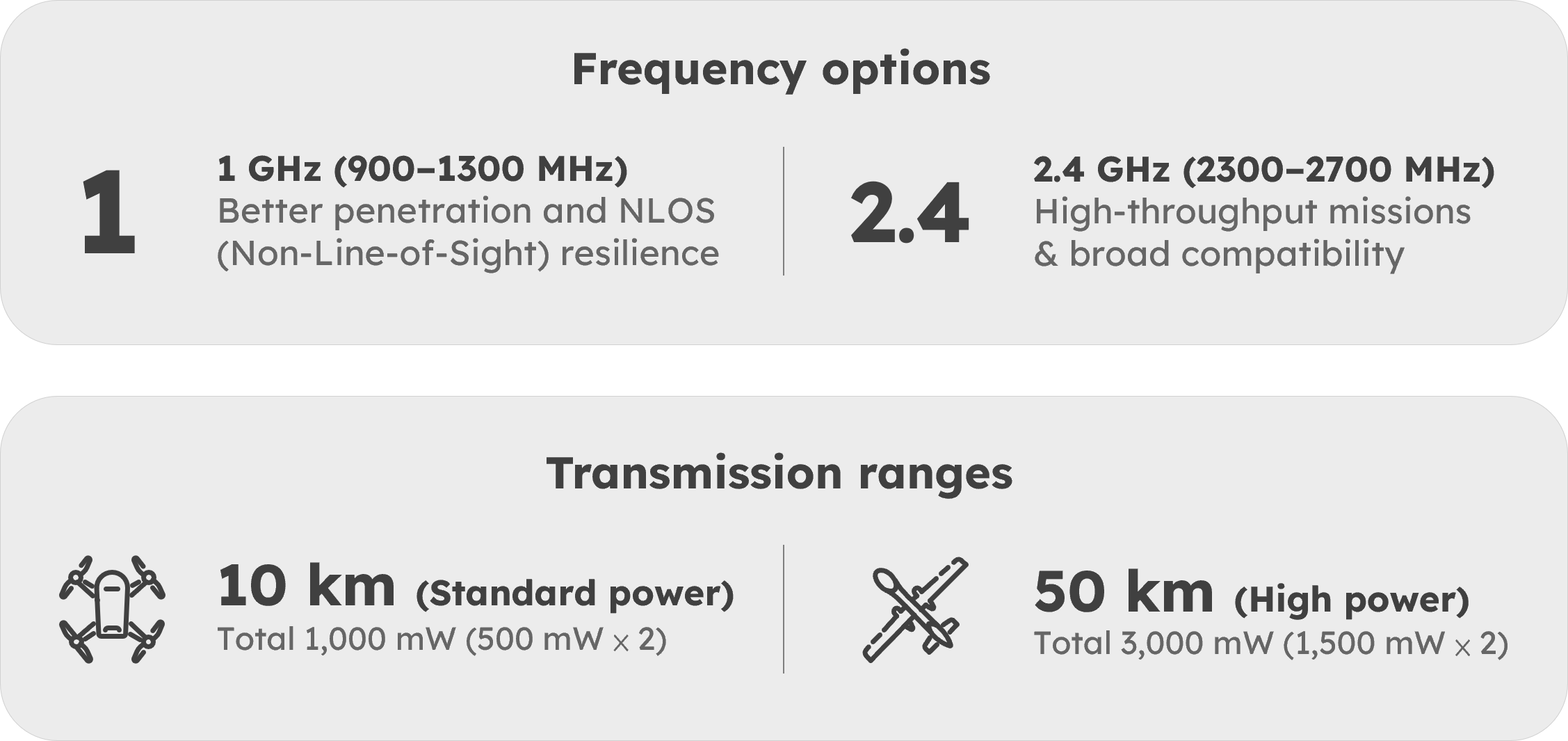

Selectable transmission ranges and frequency bands for mission readiness.
Enclosed module or bare PCB for easy platform integration.
Ultra-compact design for extended endurance and mission efficiency.
Ethernet and UART interfaces for video and system control.
2 × 500 mW chains (10 km)
2 × 1500 mW chains (50 km)
Supports real-time HD video & data.
Adaptive Modulation & Coding (QPSK, 16QAM, 64QAM )
Interference-resilient radio links
Customer-selected spectrum and transmission ranges adapt to any mission.
A comprehensive portfolio that grows with our clients’ needs, from point-to-point to AI-driven anti-jamming.
Built for rapid deployment and seamless integration, shortening development cycles.
Category |
Item |
SDRone Uno |
|
YTUAU27 Series |
YTUAU32 Series |
||
| System architecture |
Operating mode | Single-band | Single-band |
| Network architecture | Point-to-point | Point-to-point | |
| Frequency options | 1 GHz: 900–1300 MHz 2.4 GHz: 2300–2700 MHz |
1 GHz: 900–1300 MHz 2.4 GHz: 2300–2700 MHz |
|
| Estimated transmission range |
10 km | 50 km | |
| Output power | Total 1,000 mW (500 mW × 2) | Total 3,000 mW (1,500 mW × 2) | |
| Interfaces | USB × 1, UART × 2, Ethernet × 1, MicroSD card × 1 | USB × 1, UART × 2, Ethernet × 1, MicroSD card × 1 | |
| Storage | Built-in 32 GB eMMC | Built-in 32 GB eMMC | |
| Digital modulation |
Waveform | COFDM, 2×2 MIMO | COFDM, 2×2 MIMO |
| Bandwidth | 2.5 MHz | 2.5 MHz | |
| Throughput | Up to 7.5 Mbps | Up to 7.5 Mbps | |
| RF chain | 2TX, 2RX | 2TX, 2RX | |
| Carrier modulation | QPSK, 16QAM, 64QAM (adaptive) | QPSK, 16QAM, 64QAM (adaptive) | |
| Data transmission | IP-based data & video transmission | IP-based data & video transmission | |
| Receive sensitivity | -98 dBm (Bandwidth 2.5 MHz, QPSK 1/2) |
-98 dBm (Bandwidth 2.5 MHz, QPSK 1/2) |
|
| Power | DC input | 12 V / 2 A | 12 V / 3 A |
| Power consumption | Max 21 W | Max 35 W | |
| Physical (Case) | Dimension | 101 × 96 × 39 mm | 108 × 96 × 63 mm |
| Weight | 570 g | 870 g | |
| Physical (PCB)* | Dimension | 99 × 95 × 22 mm | 99 × 95 × 42 mm |
| Weight | 150 g | 300 g | |
| *Available as a bare PCB or a cased module | |||
