• 1,000 hops/sec fast frequency hopping
• 40 Mbps high-speed data throughput
• AMC for adaptive, efficient transmission
• Up to 200 km long-range communication
• 960 – 1215 MHz frequency band
• 2T2R RF chain for strong signal performance

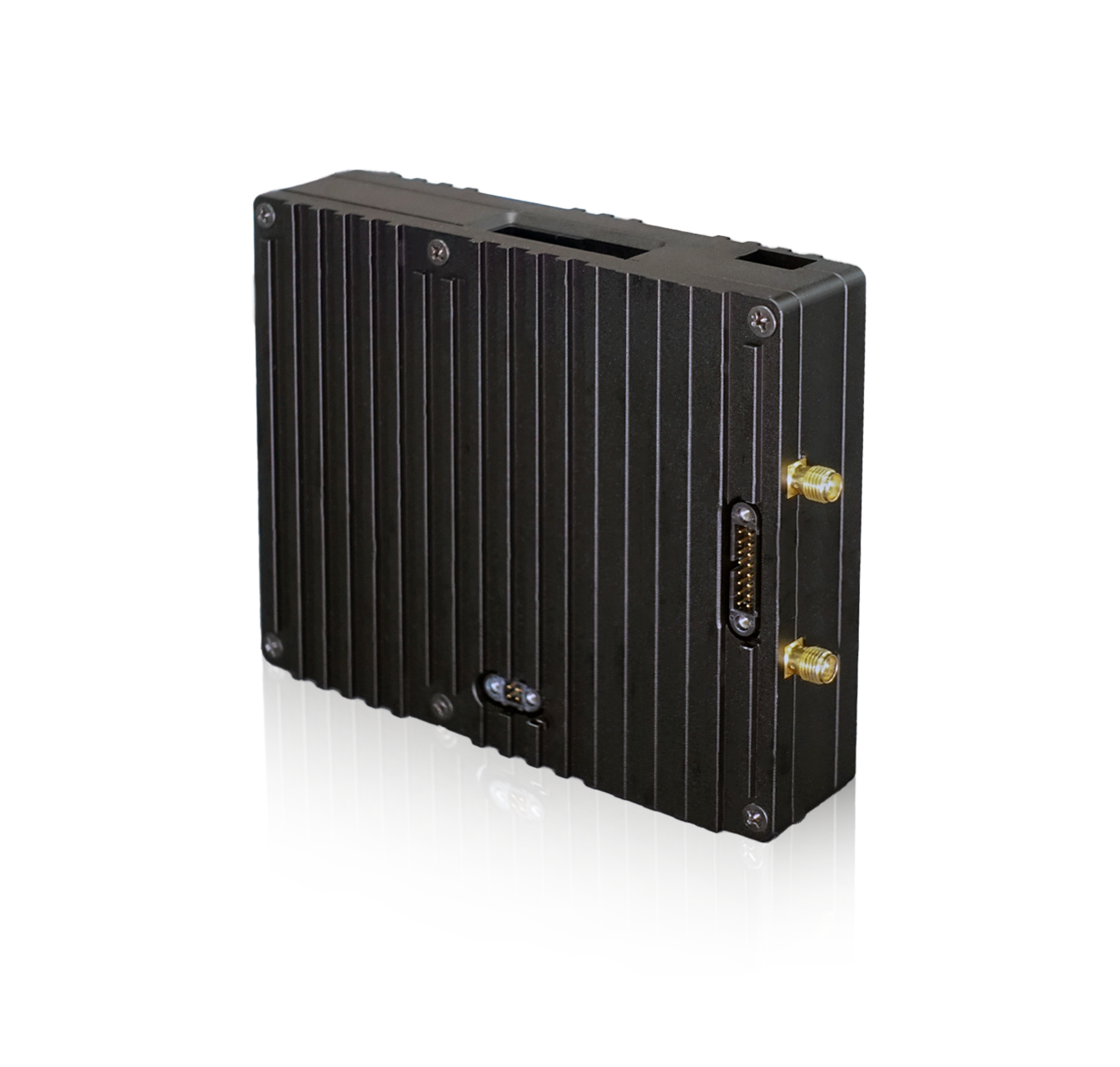

The SDRone Series is a secure UAV communication transceiver built for anti-detection and anti-jamming in high-threat environments. With 1,000 hops/sec frequency hopping and up to 40 Mbps throughput, it ensures reliable, interference-free communication. Available in 15 km, 50 km, and 200 km range options, the SDRone Series delivers exceptional reliability and mission flexibility.
SDRone features agile frequency hopping at 1,000 hops per second, effectively countering jamming, interception, and electronic attacks. It ensures stable and secure communication in hostile environments.
Transmit real-time 4K and HD video with up to 40 Mbps data rates. Ideal for surveillance and autonomous UAV operations, enabling fast data delivery and coordinated mission execution.

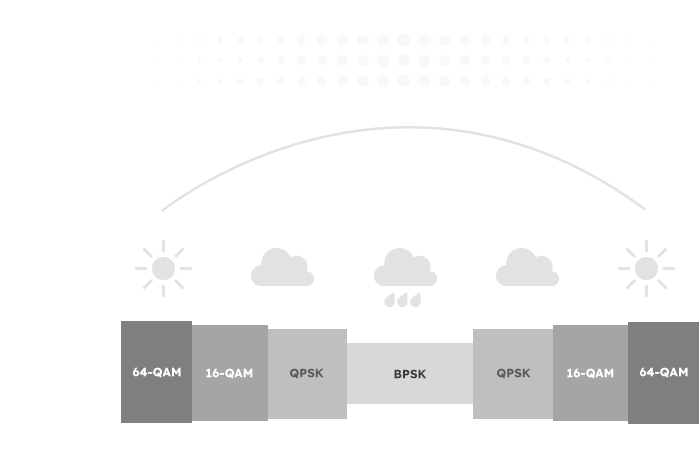

The SDRone Series dynamically adjusts modulation from BPSK to 64-QAM and coding rates in real time, maximizing operational range, improving power efficiency, and ensuring stable communication in challenging environments—ideal for high-speed, long-range UAV missions.

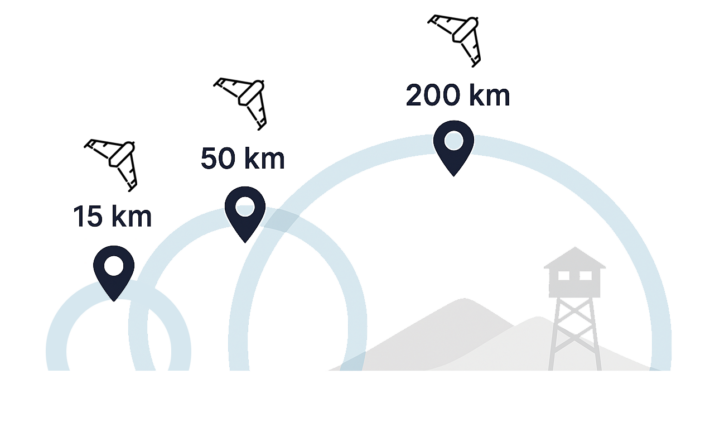

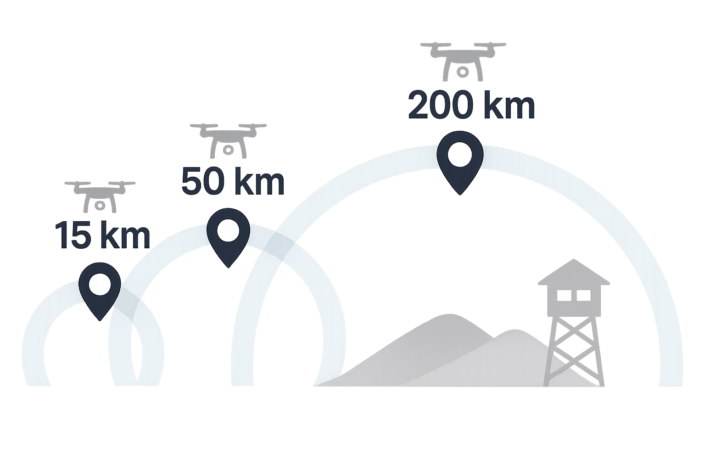

SDRone offers flexible transmission ranges—from short range (15 km), medium range (50 km) to ultra-long range (200 km)— designed to support a wide variety of mission demands. It enables relay-free communication for defense, border patrol, infrastructure monitoring, and emergency response.
Built on a software-defined radio architecture, it enables flexible, software-driven configuration and upgrades to meet evolving mission requirements across defense, security, and industrial UAV applications.
Model name |
SDRone – 200 |
SDRone – 50 |
SDRone – 15 |
| Range | Long range | Medium range | Short range |
| Distance | 200 km | 50 km | 15 km |
| Frequency | 960 – 1215 MHz | 960 – 1215 MHz | 960 – 1215 MHz |
| RF chain | 2TX, 2RX | 2TX, 2RX | 2TX, 2RX |
| Bandwidth | 1.25 – 20.0 MHz | 1.25 – 20.0 MHz | 1.25 – 20.0 MHz |
| Frequency hopping | > 1,000 hop/sec | > 1,000 hop/sec | > 1,000 hop/sec |
| Throughput | 1 Mbps at 10 Km | 1 Mbps at 10 Km | 1 Mbps at 10 Km |
| Maximum throughput | 40 Mbps | 40 Mbps | 40 Mbps |
| Waveform | COFDM, 2×2 MIMO | COFDM, 2×2 MIMO | COFDM, 2×2 MIMO |
| Carrier modulation | BPSK, QPSK, 16QAM, 64QAM (adaptive) | BPSK, QPSK, 16QAM, 64QAM (adaptive) | BPSK, QPSK, 16QAM, 64QAM (adaptive) |
| FEC rate | FEC1/2, FEC2/3 (adaptive) | FEC1/2, FEC2/3 (adaptive) | FEC1/2, FEC2/3 (adaptive) |
| Receive sensitivity | -98 dBm (Bandwidth 2.5 MHz, QPSK 1/2) | -98 dBm (Bandwidth 2.5 MHz, QPSK 1/2) | -98 dBm (Bandwidth 2.5 MHz, QPSK 1/2) |
